Wi-Fi Signal Loss (FSPL) Calculator

Estimate free-space path loss for a wireless link at a given distance and frequency — the theoretical minimum signal attenuation before any real-world obstacles are considered.

Inputs

Paste this into any page — the widget stays live and updates automatically as this calculator improves. Using WordPress or Notion? See the embed guide.

Saved Scenarios

— select 2+ to compare
Inputs updated · Results recalculated · Just now

Free-Space Path Loss (dB)

80.04

Spark says

How it's calculated

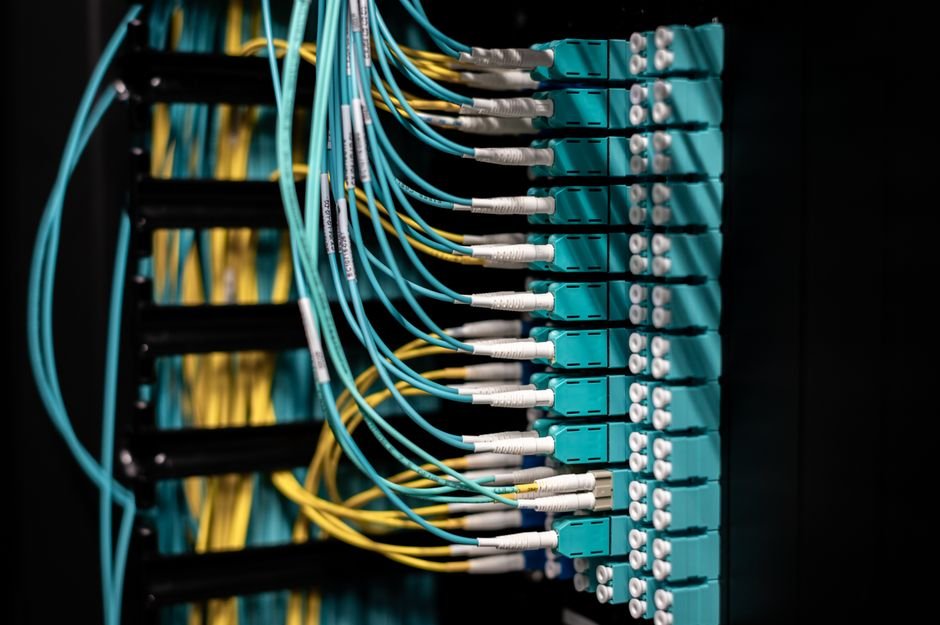

Closeup of switch in server with connectors and adapters connected to plastic device in dark room on blurred background inside
Photo by Brett Sayles on Pexels

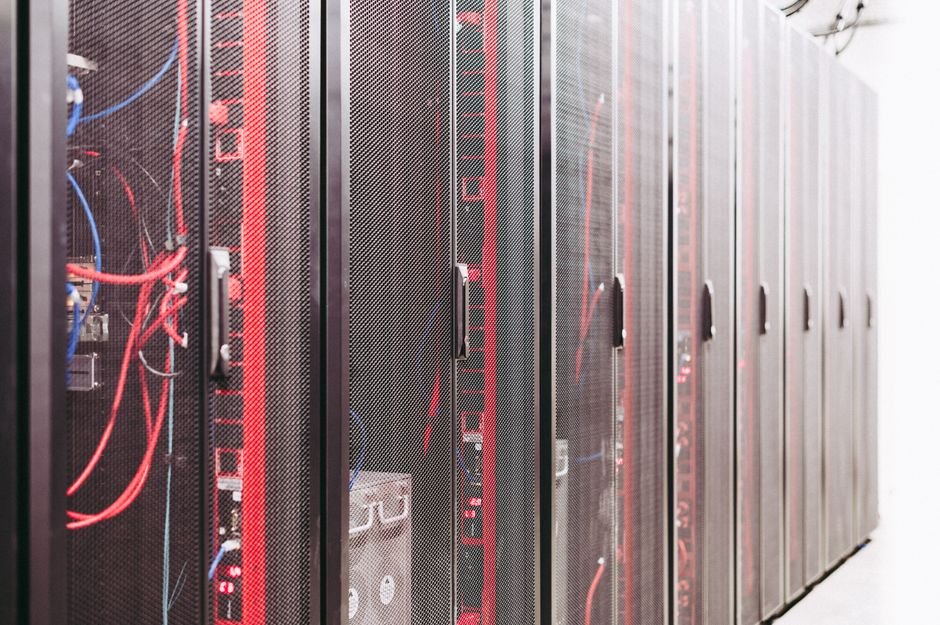

System with various wires managing access to centralized resource of server in data center
Photo by Brett Sayles on Pexels

Formula

FSPLdB=20log10(dkm)+20log10(fMHz)+32.44FSPL_{dB} = 20\log_{10}(d_{km}) + 20\log_{10}(f_{MHz}) + 32.44
d_{km}, f_{MHz}
— Distance in kilometers, frequency in megahertz

What is the Wi-Fi Signal Loss (FSPL) Calculator?

Free-space path loss (FSPL) is the signal attenuation a radio wave experiences traveling through open space with no obstructions — it's the theoretical floor for wireless link loss, used as a baseline before accounting for walls, foliage, and other obstacles.

Use this when planning a wireless link's expected range and signal strength before installation, comparing why a higher-frequency Wi-Fi band offers less range than a lower-frequency one at the same power, or estimating the baseline loss to budget additional margin for walls and obstacles.

How to use it

  1. 1 Enter the distance between transmitter and receiver.
  2. 2 Choose the frequency band.

Understanding Wi-Fi Signal Loss (FSPL) Calculator

Free-space path loss describes something genuinely fundamental about how radio waves behave, independent of any real-world obstacle: even traveling through completely empty space with nothing in the way, a radio signal loses strength as it spreads outward from its source, simply because the same total transmitted energy is being spread across an ever-larger sphere as distance increases — the same basic physical principle behind why a flashlight beam or a sound gets dimmer or quieter the farther away you get, just following the specific mathematical relationship that applies to electromagnetic wave propagation.

The formula's two key relationships are both worth understanding intuitively, not just as abstract terms in an equation. Path loss increases with distance because the signal's energy really is spreading across a larger area as it travels farther, exactly as expected — this part matches common intuition well. The frequency relationship is less intuitive: path loss also increases with frequency, meaning higher-frequency signals experience more free-space loss than lower-frequency signals traveling the identical distance, at the same transmit power. This happens because of how antenna effective aperture (a receiving antenna's practical ability to capture energy from a passing wave) relates to wavelength — higher-frequency signals have shorter wavelengths, and for a given physical antenna size, effectively capture less energy from the wave than a lower-frequency, longer-wavelength signal would, contributing to the higher calculated path loss at higher frequencies.

This frequency relationship is exactly why 5GHz and 6GHz Wi-Fi bands have shorter effective range than 2.4GHz at equivalent transmit power — a well-known practical fact to anyone who's noticed their Wi-Fi signal weakening faster when connected to a 5GHz network versus 2.4GHz in the same physical space. It's worth understanding this isn't simply '2.4GHz is better' — the higher frequency bands trade that shorter range for genuinely valuable benefits: more available channel bandwidth (allowing faster theoretical speeds) and, critically, far less interference congestion, since 2.4GHz is used by a huge number of other devices and technologies (Bluetooth, cordless phones, microwave ovens, and many other 2.4GHz-band consumer devices all compete for the same limited spectrum), while the higher bands offer more clean, uncongested spectrum. Modern Wi-Fi networks commonly use both bands simultaneously specifically to balance this tradeoff — 2.4GHz for range and better wall penetration, 5GHz or 6GHz for speed and interference-free performance where range and obstacles allow.

It's essential to understand this calculator's specific scope: free-space path loss represents the absolute theoretical minimum signal loss, assuming a perfectly clear line of sight with zero obstructions — no walls, no furniture, no trees, no interference from other signals. Real-world indoor and obstructed installations always experience additional loss on top of this baseline, sometimes substantially more, since walls and floors specifically can attenuate a wireless signal significantly, with the exact amount depending heavily on the specific building materials involved (concrete and metal-reinforced construction attenuate far more than drywall, for instance). This is exactly why free-space path loss is best used as a starting theoretical baseline for wireless link planning — genuinely useful for understanding the fundamental distance-and-frequency relationship, and for long-distance point-to-point links with genuinely clear line of sight where it comes reasonably close to the actual expected loss, but requiring substantial additional obstruction-loss budget layered on top for any realistic indoor Wi-Fi installation.

Worked examples

Advantages

  • Establishes a clear theoretical baseline before adding real-world obstruction losses on top.
  • Makes the frequency-versus-range tradeoff mathematically explicit rather than just anecdotal.
  • Useful for both Wi-Fi planning and other wireless link types (point-to-point radio, LoRa) using the same underlying physics.
  • Simple two-input calculation based on well-established radio propagation theory.

Limitations

  • Assumes perfectly clear line of sight — real-world loss is always higher once walls, trees, weather, and interference are factored in.

Common mistakes

  • ⚠️ Treating free-space path loss as the actual expected signal loss for an indoor or obstructed installation, when real-world loss from walls, furniture, and other obstacles typically adds substantially on top of this theoretical minimum.
  • ⚠️ Assuming a higher-frequency Wi-Fi band (like 5GHz or 6GHz) is simply 'worse' than 2.4GHz, without understanding that its shorter range trades off against genuinely higher available bandwidth and less interference congestion.
  • ⚠️ Comparing path loss figures across very different frequencies without accounting for the fact that antenna characteristics also vary by frequency, which affects real-world link performance beyond path loss alone.

Tips

  • 💡 Use this calculator's result as a theoretical best-case baseline, then add realistic obstruction losses (walls, floors, furniture) on top for a more accurate real-world signal estimate.
  • 💡 Remember the frequency tradeoff: higher frequencies (5GHz, 6GHz) offer more available bandwidth and less interference but shorter effective range; lower frequencies (2.4GHz) offer better range and wall penetration but more congestion and less bandwidth.
  • 💡 For long-distance point-to-point wireless links, this calculator's baseline is especially useful, since a clear line-of-sight link comes much closer to the theoretical free-space case than a typical indoor installation.
  • 💡 When troubleshooting weak Wi-Fi signal, compare a measured signal strength against this theoretical minimum to gauge how much additional loss real-world obstacles are actually contributing.

Real-life uses

  • Planning a wireless link's expected range and signal strength before installation
  • Comparing why higher-frequency Wi-Fi bands offer less range than lower-frequency bands at the same power
  • Estimating a baseline signal loss to budget additional margin for walls and obstacles
  • Troubleshooting weak Wi-Fi signal by comparing measured loss against the theoretical minimum

Frequently asked questions

Why does higher frequency mean more path loss?

Higher-frequency signals have shorter wavelengths, which are absorbed and scattered more readily by obstacles and even air molecules — this is why 5GHz Wi-Fi has shorter range than 2.4GHz at the same power.

Is 2.4GHz always better than 5GHz for Wi-Fi?

Not necessarily — 2.4GHz offers better range and wall penetration but is more congested with interference from other devices; 5GHz and 6GHz trade shorter range for more available bandwidth and much less interference.

Does this calculator account for walls and obstacles?

No — free-space path loss assumes a perfectly clear line of sight with no obstructions, representing a theoretical minimum. Real indoor installations experience meaningfully more loss once walls, furniture, and other obstacles are factored in.

When is free-space path loss closest to real-world loss?

For long-distance point-to-point wireless links with genuinely clear line of sight and minimal obstructions — this scenario comes much closer to the theoretical free-space case than a typical obstructed indoor Wi-Fi installation.

How can I use this calculator to troubleshoot weak Wi-Fi?

Compare a measured signal strength against this theoretical minimum for your actual distance and frequency — the gap between the two gives a rough sense of how much additional loss real-world obstacles in your specific environment are contributing.
